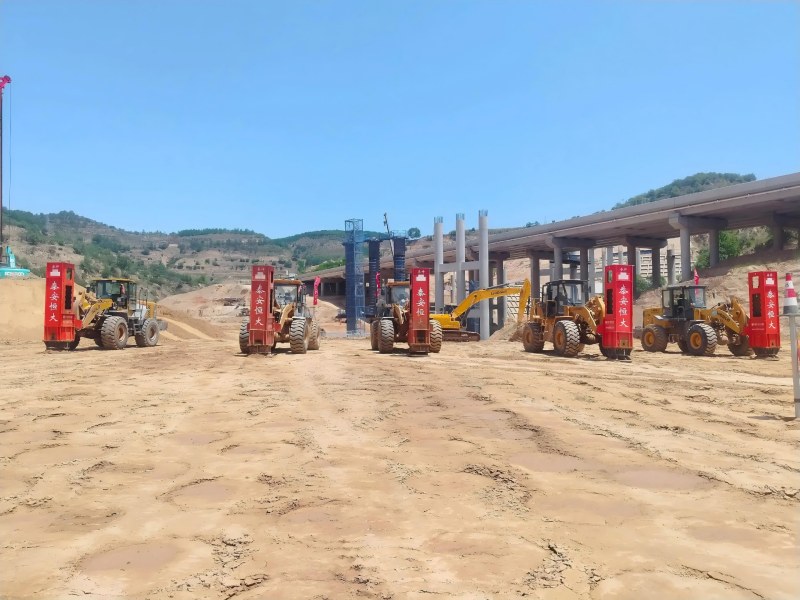

HC42 Rapid Impact Compaction Machine
42 kJ Impact Energy | 3,500 kg Drop Weight | 1.2-2.5 m Effective Depth
HC42 Complete Specifications
The HC42 delivers 42kJ impact energy in a compact loader-mounted design, ideal for confined spaces and shallow to medium-depth ground improvement applications.
Core Parameters
Dimensions
Hydraulic System
Carrier Compatibility
Typical Applications for HC42
The HC42 is specifically engineered for light-duty ground improvement tasks, excelling in confined spaces and municipal infrastructure projects where larger equipment cannot operate effectively.
Bridge Abutment Backfill
Perfect for compacting backfill around bridge abutments where space is limited and precision is critical for preventing settlement.
Culvert Side Treatment
Ideal for compacting soil around culverts, retaining walls, and other underground structures in municipal projects.
Road Widening Projects
Excellent for transition zones in road widening where new fill meets existing pavement, ensuring uniform support.
Municipal Infrastructure
Suited for compacting foundations around utility installations, manholes, and other urban infrastructure elements.
Industrial Yard Foundations
Effective for preparing compacted bases for warehouses, parking lots, and light industrial facility foundations.
Confined Zone Treatment
Designed specifically for areas where larger equipment cannot access, providing powerful compaction in tight spaces.
Compare HC42 with Similar Models
Understanding how HC42 compares with adjacent models helps in selecting the right equipment for your specific project requirements.
| Specification | HC42 | HC150 | HC180 | HC240 |
|---|---|---|---|---|
| Impact Energy | 42 kJ | 150 kJ | 180 kJ | 240 kJ |
| Drop Weight | 3,500 kg | 10,000 kg | 12,000 kg | 16,000 kg |
| Effective Depth | 1.2-2.5 m | 4-8 m | 4-8 m | 5-9 m |
| Total Weight | 6.3 t | 21.5 t | 23.8 t | 28.9 t |
| Plate Diameter | 1,000 mm | 1,500 mm | 1,500 mm | 2,000 mm |
| Height | 3,730 mm | 6,533 mm | 6,838 mm | 7,613 mm |
| Hydraulic Pressure | 16 MPa | 31.5 MPa | 31.5 MPa | 31.5 MPa |
| Flow Rate | ~160 L/min | ~500 L/min | ~600 L/min | ~600 L/min |
| Recommended Carrier | 5-6t Loader / 30-40t Excavator | 45-55t Excavator | 60t+ Excavator | 70t+ Excavator |
| Primary Use | Confined zones, light-duty | Bridge abutments, medium-depth | Heavy embankments, deep treatment | High embankments, deep reinforcement |
HC42 Design Advantages
The HC42 combines proven RIC technology with a compact, versatile design specifically optimized for light-duty applications and confined workspaces.
Light-Weight Compact Design
Weighing only 6.3 tons total, the HC42 can be mounted on 5-6 ton wheel loaders, providing excellent mobility in confined municipal work zones.
42kJ Impact Energy
Despite its compact size, the HC42 delivers 42kJ of impact energy, effectively compacting fill materials to depths of 1.2-2.5 meters.
Versatile Carrier Compatibility
Can be mounted on both wheel loaders (5-6t) and excavators (30-40t), offering flexibility for equipment already present on job sites.
Low Hydraulic Requirements
Operating at only 16 MPa and ~160 L/min flow rate, the HC42 is compatible with standard hydraulic systems on common carriers.
Operator Safety Focus
Equipped with overload protection and emergency stop systems, ensuring safe operation in urban environments with nearby workers and structures.
Simple Maintenance
Design prioritizes serviceability with accessible maintenance points, reducing downtime and keeping operating costs low.
HC42 Operation Workflow
The HC42 utilizes proven rapid impact compaction technology, delivering repeated high-energy impacts through a base plate to densify fill materials.
Mount & Connect
Attach HC42 to carrier and connect hydraulic lines
Position
Move carrier to target compaction location
Impact
Activate system for repeated 42kJ impacts
Move
Relocate to next position systematically
Frequently Asked Questions About HC42
Common questions about HC42 specifications, applications, and selection criteria.
What is the effective depth of HC42?
The HC42 achieves effective compaction depths of 1.2 to 2.5 meters, depending on soil type, moisture content, and number of blows per point. It is classified as a shallow to medium-depth RIC machine.
What carrier machines work with HC42?
The HC42 is designed for 5-6 ton wheel loaders such as VOLVO L120GZ and CAT 950L, and can also be mounted on 30-40 ton excavators as an alternative configuration.
What projects is HC42 best suited for?
HC42 excels in bridge abutment backfill, culvert side treatment, confined zone compaction, road widening transitions, and general municipal infrastructure projects with limited space.
How does HC42 compare to HC36?
HC42 offers 17% higher impact energy (42kJ vs 36kJ) with the same carrier requirements, making it the better choice when slightly deeper or denser compaction is needed.
What is the difference between loader-mounted and excavator-mounted?
Loader-mounted HC42 provides better mobility and is ideal for moving between multiple work zones. Excavator-mounted offers more precise positioning control for vertical access work.
Does HC42 require special hydraulic systems?
No. HC42 operates at 16 MPa and ~160 L/min, which are standard specifications for compatible wheel loaders and excavators, requiring no hydraulic system modifications.
Get a Quotation for HC42
Contact our engineering team to discuss your project requirements and receive a detailed quotation for the HC42 rapid impact compaction machine.
